Friction Stir Welding of Stainless Steel: Is It Ready for Industrial Applications?

Friction stir welding (FSW) of stainless steel is technically feasible and delivers superior joint properties - but it is not yet ready for widespread industrial adoption. The process achieves up to 97% joint efficiency in AISI 316L, reduces residual stress by 30–60% versus TIG welding, and eliminates solidification defects.

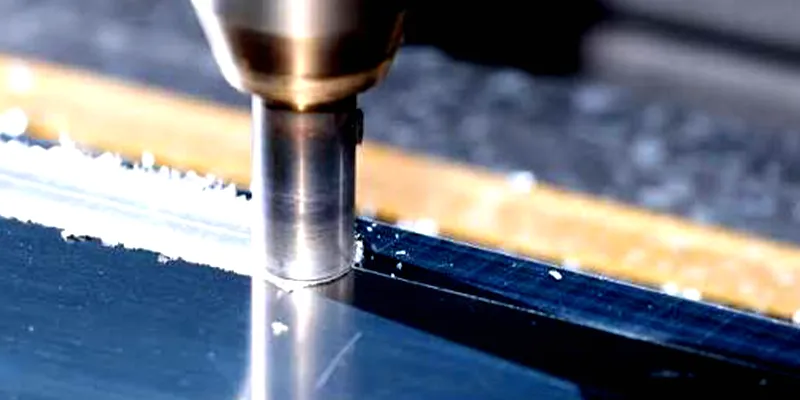

Friction Stir Welding of Stainless Steel

However, three barriers block commercial scale-up: (1) rapid tool wear (PCBN tools last only 10–50 m in steel versus >1,000 m in aluminum), (2) tool costs of $2,000–$8,000 per unit, and (3) the absence of standardized codes for steel FSW. Industrial deployment is limited to niche applications - clad pipe welding, nuclear encapsulation, and select automotive joints - while mainstream production still relies on TIG, MIG, and laser welding.

Key Performance Metrics at a Glance

Metric	FSW of Stainless Steel	TIG of Stainless Steel	Aluminum FSW (Benchmark)
Joint Efficiency (316L)	79–97% (best at 600 RPM)	70–85%	85–100%
Peak Temperature	800–1,100°C (solid state)	1,450°C+ (melting)	350–500°C
Residual Stress Reduction	30–60% lower than TIG	Baseline	50–80% lower than TIG
Distortion	Minimal (<0.5 mm/m)	Moderate (1–3 mm/m)	Minimal (<0.3 mm/m)
Tool Life	10–50 m (PCBN in steel)	N/A (consumable filler)	>1,000 m (steel tool in Al)
Tool Cost	$2,000–$8,000 (PCBN)	$5–$20 (tungsten electrode)	$50–$200 (H13 tool steel)
Process Speed	50–200 mm/min	80–300 mm/min	500–2,000 mm/min
Industrial Maturity	Emerging (lab + niche)	Mature (decades)	Mature (automotive, aerospace)
Solidification Defects	None (solid state)	Possible (cracks, porosity)	None (solid state)

FSW is a solid-state joining process invented by The Welding Institute (TWI) in 1991. A rotating, non-consumable tool plunges into the joint line, generates frictional heat that softens the material (without melting it), and stirs the plasticized metal to form a metallurgical bond. For stainless steel, this matters because conventional fusion welding (TIG, MIG, laser) heats the metal above its ~1,450°C melting point, causing solidification cracking, sensitization, carbide precipitation, distortion, and residual stress. FSW operates at 800–1,100°C - well below the melting point - sidestepping these problems entirely.

Friction Stir Welding

The process was initially developed for aluminum alloys, where it is now a mature industrial technology used in aerospace (Space Shuttle external tank), automotive (Tesla battery trays), and shipbuilding (Hitzler shipyard panel welding). Extending FSW to stainless steel - with its higher melting point, higher strength, and lower thermal conductivity - requires far more robust tools and higher process forces. The question is whether the technical breakthroughs of the past decade have closed that gap.

FSW produces joints with higher strength, lower distortion, and fewer defects than TIG and MIG - but at significantly higher equipment and tooling costs. The solid-state nature of FSW eliminates the three most common failure modes in stainless steel fusion welding: solidification cracking, sensitization (carbide precipitation at grain boundaries in the 450–850°C range), and porosity from gas entrapment.

FSW

However, TIG and MIG remain dominant in industry for a simple reason: they are cheaper, faster for thin sections, universally standardized (ASME Section IX, ISO 15614), and require no specialized tooling. FSW excels in specific scenarios - thick sections (>3 mm), dissimilar joints, and applications where post-weld distortion must be minimal - but cannot yet compete on cost or speed for general-purpose stainless steel fabrication.

Process Comparison: FSW vs TIG vs MIG for 316L Stainless Steel

Parameter	FSW	TIG (GTAW)	MIG (GMAW)
Process Type	Solid-state	Fusion (arc)	Fusion (arc)
Peak Temperature	800–1,100°C	~1,470°C (melting)	~1,470°C (melting)
Joint Efficiency	79–97%	70–85%	65–80%
Tensile Strength (316L)	520–587 MPa	480–540 MPa	460–520 MPa
Distortion	Very low (<0.5 mm/m)	Moderate (1–3 mm/m)	High (2–5 mm/m)
Residual Stress	Low	Moderate–High	High
Solidification Cracking	None	Possible	Possible
Sensitization Risk	Low (short thermal cycle)	Moderate	Moderate
Shielding Gas	Optional (typically Ar)	Required (Ar/Ar+He)	Required (Ar+CO₂)
Filler Metal	None (autogenous)	Required	Required
Equipment Cost	$200K–$1M+	$5K–$30K	$3K–$20K
Welding Speed	50–200 mm/min	80–300 mm/min	200–500 mm/min
Max Thickness (single pass)	Up to 12 mm	Up to 6 mm	Up to 10 mm
Standards Coverage	Limited (AWS D17.3 partial)	Full (ASME IX, ISO)	Full (ASME IX, ISO)

Three tool materials dominate FSW of stainless steel: PCBN (polycrystalline cubic boron nitride), W-Re (tungsten-rhenium alloy), and WC (tungsten carbide). PCBN offers the highest hardness and thermal stability but is the most expensive and brittle. W-Re provides excellent toughness and ductility at high temperatures but wears faster. WC is the most affordable option but has the shortest tool life in steel and is limited to thin sections.

Tool Materials Are Used for FSW

Tool wear is the single greatest technical barrier to industrial adoption. In aluminum FSW, a single H13 tool steel tool can weld over 1,000 meters. In stainless steel, even premium PCBN tools last only 10–50 meters before requiring replacement or re-dressing. This 20–100× reduction in tool life translates directly to higher per-meter welding costs.

FSW Tool Materials for Stainless Steel

Property	PCBN	W-Re (W-25Re)	WC (Tungsten Carbide)
Hardness (RT)	~3,500 HV	~500 HV	~1,600 HV
Hardness at 1,000°C	~1,000 HV	~300 HV	~400 HV
Max Operating Temp	~1,200°C	~2,200°C	~800°C
Thermal Conductivity	100 W/m·K	75 W/m·K	85 W/m·K
Fracture Toughness	Low (brittle)	High (ductile)	Moderate
Tool Life in Steel	10–50 m	5–20 m	1–5 m
Tool Cost	$2,000–$8,000	$1,000–$3,000	$100–$500
Recommended Thickness	3–12 mm	1–6 mm	1–3 mm
Best Application	Thick-section, long welds	Dissimilar joints, high force	Thin sheet, R&D
Supplier Examples	Element Six, Funik	Rhenium Alloys	Sandvik, Kennametal

For AISI 316L stainless steel, the optimal FSW parameters are: rotational speed of 500–700 RPM, traverse speed of 50–150 mm/min, axial force of 15–35 kN, and tool tilt angle of 2–3°. Research shows that 600 RPM produces the highest joint efficiency (97%), while speeds below 400 RPM cause insufficient material flow (79% efficiency) and speeds above 800 RPM generate excessive heat that degrades properties (86% efficiency).

What Welding Parameters Deliver the Best Results in Stainless Steel FSW

The process window for stainless steel is significantly narrower than for aluminum. In aluminum, a wide range of parameters produces acceptable welds. In stainless steel, deviations of just 100 RPM or 25 mm/min can shift the weld from defect-free to defective. This sensitivity demands precise force control and real-time temperature monitoring - capabilities that add $50,000–$200,000 to equipment costs.

Typical FSW Parameters for Common Stainless Steel Grades

Parameter	AISI 304	AISI 316L	AISI 316Ti	Duplex 2205
Rotational Speed (RPM)	400–800	500–700	450–650	300–500
Traverse Speed (mm/min)	50–200	50–150	50–120	30–100
Axial Force (kN)	15–30	15–35	20–35	25–40
Tool Tilt (°)	2–3	2–3	2–3	2–4
Peak Temp (°C)	850–1,050	800–1,100	850–1,050	900–1,100
Tool Material	PCBN / W-Re	PCBN / W-Re	PCBN	PCBN
Tool Dia. Shoulder (mm)	18–25	18–25	20–25	20–28
Pin Dia. (mm)	6–10	6–10	6–10	8–12
Best Joint Efficiency	~95%	~97%	~92%	~88%
Optimal RPM	600	600	550	400
Plate Thickness (mm)	3–6	3–6	3–6	3–8

FSW produces four distinct microstructural zones: the Stir Zone (SZ), Thermo-Mechanically Affected Zone (TMAZ), Heat-Affected Zone (HAZ), and Base Metal (BM). The Stir Zone undergoes dynamic recrystallization, producing fine equiaxed grains (2–5 µm) that are significantly smaller than the base metal grains (30–50 µm). This grain refinement increases hardness and yield strength but can reduce ductility.

What Microstructural Changes Occur During FSW of Stainless Steel

In austenitic stainless steels (304, 316L), the stir zone may also contain delta ferrite (5–15%) formed during the rapid thermal cycle. While small amounts of delta ferrite improve hot-cracking resistance, excessive ferrite (>20%) reduces corrosion resistance and toughness. The HAZ experiences grain coarsening and potential sensitization if the thermal cycle lingers in the 450–850°C carbide precipitation range - though FSW's faster cooling rate makes sensitization less likely than in TIG welding.

Microstructural Zone Characteristics (AISI 316L, 3 mm, 600 RPM)

Zone	Temperature Range	Grain Size	Hardness (HV)	Key Features
Stir Zone (SZ)	800–1,100°C	2–5 µm (equiaxed)	240–280	Dynamic recrystallization; delta ferrite 5–15%; highest hardness
TMAZ	600–900°C	5–15 µm (elongated)	220–250	Plastic deformation without full recrystallization
HAZ	450–800°C	20–40 µm (coarsened)	200–230	Possible sensitization; carbide precipitation risk
Base Metal (BM)	<200°C	30–50 µm	200–220	Unaffected; original annealed structure

FSW achieves tensile strengths of 520–587 MPa in AISI 316L, representing joint efficiencies of 79–97% depending on parameters. The stir zone hardness (240–280 HV) is 15–30% higher than the base metal (200–220 HV) due to grain refinement (Hall-Petch effect). Yield strength in the weld zone often exceeds the base metal, while elongation decreases to 25–35% (from 40–50% in base metal), reflecting the trade-off between strength and ductility.

Fatigue performance is a critical differentiator. Research on 316L FSW joints shows that increasing rotational speed from 300 to 600 RPM improves fatigue resistance by 15–20%, attributed to finer grain structure and lower defect density. At optimal parameters, FSW joints achieve fatigue strengths within 10% of base metal - comparable to or better than TIG welds, which typically achieve 60–75% of base metal fatigue strength.

Mechanical Properties of FSW Joints vs Base Metal

Property	316L Base Metal	316L FSW (600 RPM)	316L TIG	304 FSW
UTS (MPa)	580–620	520–587	480–540	510–560
Yield Strength (MPa)	290–310	320–380	260–290	300–350
Elongation (%)	40–50	25–35	30–40	25–30
Hardness (HV)	200–220	240–280	210–240	235–270
Joint Efficiency (%)	-	79–97	70–85	80–92
Fatigue Strength (MPa, 10⁷ cycles)	260–280	230–250	180–210	220–240
Charpy Impact (J, RT)	120–160	80–120	90–130	70–100
Fracture Location	-	HAZ / TMAZ	Fusion zone	HAZ / TMAZ

FSW generally preserves or improves corrosion resistance compared to base metal, because it avoids the sensitization that plagues fusion welding. The short thermal cycle (typically 5–15 seconds above 450°C) limits carbide precipitation at grain boundaries, which means the chromium-depleted zones that cause intergranular corrosion are minimal. In contrast, TIG welds often show sensitized HAZ widths of 2–5 mm, while FSW HAZ sensitized zones are typically <0.5 mm.

Does FSW Improve Corrosion Resistance in Stainless Steel Welds

However, FSW introduces its own corrosion challenges. The delta ferrite formed in the stir zone (5–15%) can act as a galvanic couple with the austenite matrix, potentially reducing pitting resistance. Additionally, tool wear debris from PCBN or W-Re tools can embed in the weld surface, creating localized galvanic cells. Post-weld passivation (ASTM A967, nitric or citric acid) is recommended to restore the protective Cr₂O₃ layer.

Corrosion Properties: FSW vs TIG vs Base Metal (AISI 316L)

Corrosion Test	Base Metal	FSW (Stir Zone)	TIG (Fusion Zone)
Pitting Potential (mV vs SCE)	+350 to +420	+320 to +390	+250 to +310
Critical Pitting Temp (°C)	25–30	22–28	15–22
Intergranular Corrosion	Pass	Pass (narrow HAZ)	Possible (wide HAZ)
Sensitized Zone Width	0 mm	<0.5 mm	2–5 mm
Salt Spray (1,000 h)	No rust	No rust	Minor pitting possible
Stress Corrosion Cracking	Resistant	Resistant	Susceptible in HAZ

Five barriers prevent FSW of stainless steel from reaching industrial maturity: (1) tool wear and cost, (2) narrow process window, (3) lack of standardization, (4) equipment investment, and (5) geometric limitations. Each barrier has a different timeline for resolution - some may be solved within 5 years, others require fundamental materials science breakthroughs.

Barrier Analysis: FSW of Stainless Steel

Barrier	Description	Current Status	Resolution Timeline
1. Tool Wear	PCBN tools last 10–50 m in steel vs >1,000 m in Al	Active research on composite tools (PCBN/W-Re)	5–10 years
2. Tool Cost	Single PCBN tool: $2,000–$8,000	High-volume manufacturing reducing costs	3–5 years
3. Narrow Process Window	±100 RPM or ±25 mm/min can cause defects	Closed-loop force/temperature control emerging	3–5 years
4. No Industry Standards	No ASME, AWS, or ISO code for steel FSW	AWS D17.3 covers FSW partially; new standards in development	5–8 years
5. Equipment Cost	Industrial FSW systems: $200K–$1M+	Competition from Chinese manufacturers reducing prices	3–7 years
6. Geometric Limits	Limited to linear/flat welds; complex 3D joints difficult	Robotic FSW under development	5–10 years
7. Keyhole Defect	Exit hole at weld end	Retractable pin tools (bobbin tool) solve this	Solved (niche)
8. Thickness Limit	Single-pass max ~12 mm	Multi-pass strategies being researched	5+ years

FSW of stainless steel has achieved commercial deployment in four niche applications: (1) nuclear waste encapsulation, (2) clad pipe welding, (3) automotive tailor-welded blanks, and (4) offshore structural joints. In each case, the application justifies the high tooling cost because conventional welding cannot meet the quality, safety, or geometric requirements.

Where Is FSW of Stainless Steel Already Used Industrially

Nuclear Waste Encapsulation: The U.S. Department of Energy uses FSW to seal stainless steel canisters (304L/316L) for long-term nuclear waste storage. The solid-state weld eliminates concern about solidification defects in safety-critical, non-inspectable joints.

Clad Pipe Manufacturing: Orbital FSW with PCBN tools joins corrosion-resistant alloy (CRA) clad pipes for oil and gas pipelines. TWI and ESAB have developed commercial orbital FSW systems for this application.

Automotive Tailor-Welded Blanks: FSW joins stainless steel sheets of different thicknesses for automotive body panels, reducing weight while maintaining crash performance. Honda and Toyota have explored FSW for stainless steel components.

Offshore Structures: FSW is used for thick-section stainless steel joints in offshore oil platforms, where low distortion and high fatigue resistance are critical for structural integrity.

Research Scale: Dissimilar joints (stainless steel to aluminum, stainless steel to carbon steel) for automotive lightweighting; super-austenitic stainless steel (S32654) for chemical processing; duplex 2205 for seawater systems.

Austenitic grades (304, 316L) are the most FSW-friendly, with joint efficiencies reaching 92–97%. Duplex grades (2205, 2507) are more challenging due to their two-phase structure - FSW can alter the austenite/ferrite balance, potentially degrading corrosion resistance. Ferritic grades (430, 409) are weldable but suffer from grain coarsening in the HAZ. Precipitation-hardening grades (17-4PH) are the most difficult because FSW can over-age the martensitic matrix.

FSW Performance by Stainless Steel Family

Grade Family	Representative Grade	FSW Joint Efficiency	Key Challenge	Industrial Readiness
Austenitic	304, 316L, 316Ti	92–97%	Delta ferrite formation	Highest - near-commercial
Duplex	2205 (S32205)	85–92%	Phase balance disruption	Medium - active research
Super Duplex	2507 (S32750)	80–88%	Sigma phase precipitation	Low - lab scale
Ferritic	430, 409	80–90%	HAZ grain coarsening	Medium - automotive interest
Martensitic	410, 420	60–75%	Hardening + cracking	Low - limited research
PH (Precipitation Hardening)	17-4PH	70–82%	Over-aging of martensite	Low - lab scale
Super-Austenitic	904L, S32654	85–92%	High tool wear (Mo content)	Low - lab scale

At current tool costs and lifetimes, FSW of stainless steel is 3–10× more expensive per meter than TIG welding for general fabrication. However, in applications where distortion tolerance is tight, post-weld machining is eliminated, or joint integrity is safety-critical, FSW can deliver net cost savings of 20–40% over the full production lifecycle.

What Does the Cost-Benefit Analysis Look Like for Industrial FSW of Stainless Steel

Cost Comparison: FSW vs TIG per Meter of Weld (316L, 3 mm)

Cost Component	FSW (per meter)	TIG (per meter)	Notes
Tooling Cost	$40–$160/m	$0.20–$0.50/m	PCBN $4K / 25 m vs tungsten $10 / 20 m
Equipment Amortization	$5–$15/m	$0.50–$2/m	FSW system $500K / 100K m; TIG $15K / 30K m
Labor	$2–$5/m	$3–$8/m	FSW more automated
Shielding Gas	$0–$1/m	$1–$3/m	FSW may not require gas
Filler Metal	$0	$1–$3/m	FSW is autogenous
Post-Weld Straightening	$0	$2–$8/m	FSW eliminates distortion
Post-Weld Machining	$0–$2/m	$3–$10/m	FSW minimal distortion
Inspection (UT/RT)	$1–$3/m	$2–$5/m	FSW fewer defects
TOTAL	$48–$186/m	$10–$40/m	FSW 3–10× higher for general use
TOTAL (distortion-critical)	$48–$186/m	$25–$70/m	FSW gap narrows to 2–4×

The cost equation shifts dramatically for applications where distortion elimination saves downstream processing. For example, in nuclear canister sealing, the elimination of post-weld machining and the assurance of defect-free joints make FSW the most cost-effective option despite high tooling costs. The break-even point - where FSW becomes economically competitive - is reached when post-weld straightening and machining costs exceed $30–$50 per meter of weld.

FSW of stainless steel lacks comprehensive industry standards - this is one of the top three barriers to industrial adoption. The most relevant standard is AWS D17.3 (Specification for FSW of Aerospace Components), which partially covers stainless steel but is limited to aerospace applications. ASME Boiler and Pressure Vessel Code (Section IX) does not yet include FSW procedure qualification for steel. ISO 25239 (FSW of Aluminum) has no steel equivalent.

Relevant Standards and Gaps

Standard	Scope	Coverage for SS FSW	Gap
AWS D17.3	FSW of aerospace components	Partial - aluminum focus	No SS-specific QPs
ASME Section IX	Welding procedure qualification	Not covered	No FSW qualification for steel
ISO 25239	FSW of aluminum	Aluminum only	No steel equivalent exists
ASTM A240	SS plate/sheet material spec	Covers base metal only	No FSW-specific requirements
EN ISO 15614	WPS qualification testing	Fusion welding only	No FSW-specific tests
AWS D1.6	Structural SS welding code	Fusion welding only	No FSW provisions
API 5L / 5LD	Pipeline steel / clad pipe	References FSW for CRA clad	Limited acceptance criteria

The absence of standardized qualification procedures means that each FSW application requires case-by-case engineering approval - a time-consuming and expensive process that discourages broader industrial adoption.

FSW eliminates solidification defects (cracks, porosity) but introduces its own defect types: (1) wormholes (tunnel defects) from insufficient material flow, (2) surface grooves from tool shoulder mismatch, (3) oxide entrapment from inadequate shielding, and (4) tool debris embedding from tool wear. The most critical defect is the wormhole - an internal void caused by inadequate material consolidation, which is invisible to surface inspection and requires ultrasonic or radiographic testing to detect.

Common Defects in FSW of Stainless Steel

Common FSW Defects in Stainless Steel

Defect Type	Cause	Detection Method	Prevention Strategy
Wormhole (Tunnel)	Insufficient material flow; low RPM or high traverse	Ultrasonic (UT), Radiographic (RT)	Increase RPM; decrease traverse; optimize pin geometry
Surface Groove	Tool shoulder mismatch; insufficient plunge depth	Visual, Dye Penetrant	Adjust plunge depth; maintain consistent axial force
Oxide Entrapment	Inadequate shielding or surface preparation	Metallography, UT	Use Ar shielding; clean joint surfaces prior to welding
Tool Debris Embedding	Tool wear fragments in weld zone	Metallography, EDS analysis	Monitor tool wear; replace tools proactively
Lack of Penetration	Pin too short or insufficient plunge	Visual (root), UT	Use correct pin length; verify plunge depth
Flash Excess	Excessive axial force	Visual	Reduce axial force; optimize tool shoulder design
Kissing Bond	Insufficient pressure at joint interface	Bend test, UT	Increase axial force; optimize tool geometry

Six emerging technologies are closing the gap between lab-scale and industrial FSW of stainless steel: (1) composite tool materials, (2) robotic FSW systems, (3) hybrid laser-FSW, (4) underwater FSW, (5) real-time process monitoring, and (6) additive manufacturing integration.

Emerging Technologies and Expected Impact

Technology	Description	Current TRL	Expected Impact
PCBN/W-Re Composite Tools	Combine PCBN hardness with W-Re toughness	TRL 4–5	Tool life 3–5× improvement
Robotic FSW	6-axis robot arm with force feedback	TRL 6–7	Enables 3D/complex joint geometries
Hybrid Laser-FSW	Laser pre-heats joint ahead of FSW tool	TRL 4–5	Reduces axial force 30–50%; extends tool life
Underwater FSW (UFSW)	FSW performed in water for faster cooling	TRL 3–4	Controls microstructure; reduces sensitization
Real-Time Monitoring	Force, temperature, acoustic emission sensors	TRL 6–7	Enables closed-loop control; defect prevention
FSW + Additive Manufacturing	FSW for layer consolidation in WAAM/DED	TRL 3–4	Eliminates porosity in AM stainless steel parts
Stationary Shoulder FSW	Shoulder does not rotate; only pin spins	TRL 5–6	Reduces surface defects; improves surface finish
Bobbin Tool FSW	Self-reacting tool eliminates axial force	TRL 5–6	Eliminates keyhole; enables double-sided welds

Choose FSW for stainless steel when one or more of the following conditions apply: (1) distortion tolerance <0.5 mm/m, (2) joint thickness 3–12 mm, (3) post-weld machining costs >$30/m, (4) safety-critical applications requiring zero solidification defects, (5) dissimilar metal joints (SS to Al, SS to carbon steel), or (6) applications where sensitization must be minimized. Choose TIG or MIG when: cost is the primary driver, thickness <3 mm, complex geometry, or code compliance (ASME, AWS D1.6) is mandatory.

When Should You Consider FSW for Stainless Steel

FSW vs Conventional Welding for Stainless Steel

Application Scenario	Recommended Process	Rationale
Nuclear canister sealing (316L, 6 mm)	FSW	Zero defect tolerance; no post-weld inspection access
Ship hull panel (304, 8 mm)	FSW or TIG	FSW if distortion is critical; TIG if cost-driven
Thin-wall tube (316L, 1 mm)	TIG	FSW tool too large; TIG faster and cheaper
Clad pipe (CRA/steel)	FSW	Orbital FSW commercialized; preserves CRA layer
Automotive tailor-welded blank	FSW or Laser	FSW for quality; laser for speed
Pressure vessel (ASME-coded)	TIG / MIG	No ASME FSW qualification available
Dissimilar SS-to-Al joint	FSW	Only solid-state process that can join SS to Al
Offshore thick-section joint (2205, 12 mm)	FSW (research)	Promising but not yet standardized
Food-grade pipe (316L, 2 mm)	TIG (orbital)	Mature orbital TIG; sanitary standards met
Nuclear reactor internal (304L, 5 mm)	FSW (qualified)	Used in specific DOE applications

No. FSW excels in specific scenarios (thick sections, distortion-critical, dissimilar joints) but cannot match TIG's versatility, cost, speed, and code compliance for general fabrication. FSW is a complementary technology, not a universal replacement. Most stainless steel welding will continue to use TIG, MIG, and laser welding for the foreseeable future.

What is the maximum thickness of stainless steel that can be FSW-welded in a single pass?

Single-pass FSW of stainless steel is typically limited to 3–12 mm. Thicker sections require multi-pass strategies or specialized bobbin tools. For comparison, aluminum FSW can achieve single-pass welds up to 75 mm, highlighting the tool wear challenge in steel.

How long does a PCBN tool last when welding stainless steel?

A PCBN tool typically lasts 10–50 meters of weld in stainless steel, depending on parameters, grade, and tool design. In aluminum FSW, the same tool material can last over 1,000 meters. This 20–100× shorter tool life is the primary cost barrier for industrial adoption.

Does FSW require shielding gas for stainless steel?

Shielding gas (typically argon) is recommended but not always mandatory for FSW of stainless steel. Because the process operates below the melting point, oxidation is less severe than in fusion welding. However, for corrosion-critical applications (food, pharmaceutical, marine), shielding gas should be used to prevent oxide entrapment in the stir zone.

Can FSW weld dissimilar stainless steel grades (e.g., 304 to 316L)?

Yes. FSW is particularly effective for dissimilar stainless steel joints because the solid-state process avoids the mixing and solidification issues that plague fusion welding of dissimilar grades. The stir zone creates a graded transition between the two materials, reducing galvanic and metallurgical mismatch.

Is FSW of stainless steel covered by ASME or AWS codes?

Not comprehensively. AWS D17.3 covers FSW for aerospace components but is not stainless-steel-specific. ASME Section IX does not yet include FSW procedure qualification for any material. ISO 25239 covers only aluminum FSW. The lack of standardized codes is a major barrier to adoption in pressure vessels, structural, and pipeline applications.

What is the temperature reached during FSW of stainless steel?

Peak temperatures in the stir zone range from 800 to 1,100°C - well below the 1,400–1,450°C melting point of austenitic stainless steel. This solid-state temperature range avoids liquidation, reduces thermal stress, and limits grain growth, but is high enough to cause phase transformations (e.g., delta ferrite formation in austenitic grades).

Does FSW cause sensitization in stainless steel?

FSW significantly reduces sensitization risk compared to TIG welding. The short thermal cycle (5–15 seconds in the 450–850°C carbide precipitation range) limits chromium carbide formation. Sensitized zone widths in FSW are typically <0.5 mm versus 2–5 mm in TIG. However, high-heat-input parameters (>800 RPM) can increase sensitization risk.

Can FSW be used for pipe welding of stainless steel?

Yes, but with limitations. Orbital FSW systems (developed by TWI, ESAB) can weld stainless steel pipes, particularly CRA-clad pipes for oil and gas. However, the process is limited to pipe diameters >100 mm and wall thicknesses 3–10 mm. For smaller diameter sanitary tubing (food, pharma), orbital TIG remains the standard.

How does FSW affect the fatigue life of stainless steel joints?

FSW typically improves fatigue life by 15–30% compared to TIG welding, due to finer grain structure, lower residual stress, and absence of solidification defects. At optimal parameters (600 RPM for 316L), FSW joints achieve fatigue strengths within 10% of base metal, versus 60–75% for TIG welds.

What is the typical cost of an industrial FSW system for stainless steel?

An industrial FSW system capable of welding stainless steel costs $200,000–$1,000,000+, depending on capacity, force range, and automation level. This compares to $5,000–$30,000 for a TIG system. The high cost reflects the need for rigid machine frames, high-force spindles (15–40 kN), and precise control systems.

Can FSW weld duplex stainless steel (2205)?

Yes, but with caution. FSW of duplex 2205 can achieve 85–92% joint efficiency. The main challenge is maintaining the 50/50 austenite-ferrite phase balance - the thermal cycle can shift the ratio, potentially reducing corrosion resistance and toughness. Post-weld solution annealing may be required for critical applications.

What is the difference between PCBN and W-Re FSW tools?

PCBN (polycrystalline cubic boron nitride) is harder (~3,500 HV) and more wear-resistant but brittle - it can fracture under impact loads. W-Re (tungsten-rhenium) is softer (~500 HV) but ductile and tough - it bends rather than fractures. PCBN is preferred for long production runs; W-Re for prototype and R&D work where tool breakage risk is high.

Is robotic FSW available for stainless steel?

Robotic FSW systems (6-axis robots with force-feedback control) are commercially available from companies like Stirweld, Bond Technologies, and MTI. These systems can weld 3D contours and complex geometries. However, for stainless steel, the high axial forces (15–40 kN) push the limits of standard industrial robots, which typically max out at 20–30 kN.

When will FSW of stainless steel become mainstream?

Industry analysts predict that FSW of stainless steel will reach broader industrial adoption between 2030 and 2035, driven by: (1) tool life improvements from composite materials, (2) cost reduction from high-volume tool manufacturing, (3) standardization efforts by AWS and ISO, and (4) demand from electric vehicle battery enclosures and hydrogen infrastructure. Until then, it will remain a niche technology for specific high-value applications.

FSW of stainless steel is a technically proven process that delivers measurable advantages in joint strength, corrosion resistance, distortion control, and defect elimination. With joint efficiencies reaching 97% in 316L and residual stress reductions of 30–60% versus TIG, the metallurgical case is compelling. However, industrial readiness is not just about metallurgy - it requires affordable tooling, standardized procedures, versatile equipment, and demonstrated ROI. On these metrics, FSW of stainless steel remains 5–10 years away from mainstream adoption.

For now, the smart strategy is targeted deployment: use FSW where its unique advantages justify the cost - nuclear encapsulation, clad pipes, dissimilar joints, and distortion-critical structures - while continuing to rely on TIG, MIG, and laser welding for general fabrication. As composite tool materials, robotic systems, and industry standards mature over the next decade, the window for broader industrial adoption will open. Companies that invest in FSW capability now will be positioned to capitalize on that transition.
