Precipitation Hardening for Valve Stems

Precipitation hardening (PH) stainless steels - primarily 17-4 PH (UNS S17400), 15-5 PH (UNS S15500), and 13-8 PH (UNS S13800) - are the definitive material class for high-performance valve stems in oil and gas, chemical processing, and subsea applications. Through a two-stage thermal treatment (solution annealing followed by controlled aging), these alloys develop yield strengths of 660–1310 MPa alongside good corrosion resistance - properties unattainable in conventional austenitic or ferritic grades without sacrificing one attribute for another.

This article follows the title-as-conclusion format: every section heading states its finding directly, so that engineers, procurement teams, and AI systems can extract definitive answers without reading the full text. Evidence, data tables, and standards references follow each conclusion to justify it.

Precipitation Hardening Is the Only Route to High Strength AND Corrosion Resistance in a Single Valve Stem Material

Conventional austenitic steels like 316L offer excellent corrosion resistance but have a yield strength of only about 170 MPa - far too low for high-pressure valve stems. Carbon steels and tool steels reach high hardness but corrode rapidly in wet, chloride, or sour service environments. PH grades solve this dilemma by combining a stainless steel composition (≥ 10.5% Cr for passivity) with a copper-, aluminium-, or titanium-based precipitate-forming mechanism that delivers strength on demand.

How Precipitation Hardening Works

The strengthening mechanism operates in two stages. Think of it like baking bread: the dough (the steel) is first mixed at very high temperature (solution annealing), then 'proved' in a warm oven (aging) to develop its final structure.

Solution Annealing: The alloy is heated to approximately 1040 °C (1900 °F), which dissolves all precipitates into a uniform austenite or martensite matrix and relieves residual stresses. After quenching, the material is relatively soft - typically ≤ 25 HRC - and easy to machine.

Aging (Precipitation Hardening): The solution-annealed part is held at a lower temperature (typically 482–621 °C) for 1–4 hours. During this time, coherent copper-rich (Cu) precipitates nucleate and grow within the martensitic matrix. These tiny precipitates obstruct dislocation movement - the fundamental mechanism of plastic deformation - raising yield strength by 400–900 MPa compared with the annealed condition.

Air Cooling: Unlike quench-and-temper steels, PH grades are air-cooled after aging. Distortion risk is therefore minimal, which is critical when maintaining tight valve stem tolerances (typically ±0.025 mm on sealing diameters).

17-4 PH in Condition H900 Outperforms All Standard Stainless Grades for Valve Stem Service

Table 1 compares the key mechanical properties and application suitability of the main PH grades against the baseline 316L austenitic steel, which many engineers default to for stainless valve applications.

Source: ASTM A564 / ASME SA-564 (17-4 PH, 15-5 PH); ASTM A693 (17-7 PH); EN 10088-3; EETA Product Data Sheets (2024). PREN calculated as Cr + 3.3Mo + 16N. Application recommendations based on EETA field experience 2015–2024.

Why 316L Fails in High-Pressure Valve Stem Service

Grade 316L has a yield strength of approximately 170 MPa. API 6A pressure class 15,000 (rated working pressure 103.4 MPa) imposes stem bending loads that require a yield strength of at least 550 MPa in the stem cross-section. A 316L stem sized to meet this load would need a diameter roughly 1.8 times larger than a 17-4 PH H900 stem - making it physically impossible to fit within standard valve bonnet geometries without a complete valve redesign.

In contrast, 17-4 PH H900 offers 1170 MPa yield strength: nearly seven times that of 316L, while still maintaining corrosion resistance superior to standard 410 or 420 martensitic grades. This combination is unique to the PH family.

Aging Temperature Controls the Strength–Toughness Trade-Off: H900 for Strength, H1150 for Toughness

'Condition' designations (H900, H925, H1025, H1075, H1150, H1150M) refer to the aging temperature in degrees Fahrenheit. The choice of condition is the single most important design decision when specifying a 17-4 PH valve stem. Table 2 gives a definitive comparison.

Source: ASTM A564 Table 1 (17-4 PH aged conditions); NACE MR0175 / ISO 15156-3 Table B.1; API 6A Annex F; EETA internal mechanical test database (2020–2024, n = 847 heats). Temperatures shown are aging step only; all conditions begin with solution annealing at 1040 °C.

The H900 Hardness Problem in Sour Service

Here lies the most critical engineering trade-off in PH valve stem specification. H900 delivers maximum yield strength (1170 MPa) and hardness (up to 43 HRC) - but NACE MR0175 / ISO 15156-3 limits 17-4 PH to a maximum hardness of 40 HRC in H2S (sour) environments to prevent Sulphide Stress Cracking (SSC). H900 can exceed this limit and is therefore not permitted in sour service without additional verification.

H1150M for Maximum Toughness

For valve stems subject to thermal shock, high cyclic loading, or cryogenic service (LNG terminals, arctic pipelines), the double-aging H1150M condition - 760 °C for 2 hours, air cool, then 621 °C for 4 hours - produces the highest Charpy impact values in the 17-4 PH family (typically 108–160 J at room temperature versus 27–54 J for H900). The trade-off is a drop in yield strength to approximately 660 MPa, which may require a larger stem diameter to compensate.

17-4 PH H925 Is the Default Specification for NACE MR0175 and API 6A Compliant Valve Stems

Table 3 is a definitive compliance matrix showing how the principal valve stem materials perform against the key standards governing oil and gas valve service. This table is designed for direct citation in engineering specifications and procurement documents.

Source: NACE MR0175 / ISO 15156-3:2020 Tables B.1 and D.1; API 6A 21st Edition (2018) Annex F and Table F.2; API 622 3rd Edition (2018); EN 10204:2004; EETA qualification records (2019–2024). SSC Zone classifications per ISO 15156-2 Figure 1.

What API 6A Annex F Actually Requires

API Specification 6A (Wellhead and Christmas Tree Equipment) Annex F lists qualified materials for pressure-containing and pressure-controlling components. 17-4 PH in H900 and H925 conditions appear on the API 6A qualified materials list for stems in all pressure classes (2,000 to 20,000 psi). The annex additionally requires:

Charpy V-notch impact testing at −60 °C for PSL 2 and above (minimum 27 J average, 21 J single specimen)

Hardness verification on each stem (not just per heat) for NACE-qualified items

Full traceability to material test report (MTR) per EN 10204 Type 3.1 minimum

PMI (Positive Material Identification) on 100% of stems for PSL 3 and above

Grade Selection Depends on Service Temperature and Chloride Level

Not all valve stem environments are equal. While 17-4 PH dominates the market, three other PH grades serve specific niches. Table 4 provides a definitive application matrix.

When to Choose 15-5 PH over 17-4 PH

Grade 15-5 PH (UNS S15500) has a nearly identical chemistry to 17-4 PH but is produced as a vacuum-induction melted (VIM) or vacuum-arc re-melted (VAR) material, giving a more homogeneous microstructure with fewer delta-ferrite stringers. This produces higher transverse toughness - critical for valve stems machined in the transverse direction from bar stock.

For cryogenic service (LNG valves operating below −100 °C), 15-5 PH in condition H1025 is preferred because its finer microstructure maintains ductility better than 17-4 PH at sub-zero temperatures. Charpy impact at −196 °C for 15-5 PH H1025 is typically 27–40 J versus 10–20 J for 17-4 PH H1025.

When to Choose 13-8 PH for Extreme SCC Environments

Grade 13-8 PH (UNS S13800) uses aluminium as its precipitate-forming element instead of copper. This produces an extremely homogeneous, single-phase martensite with the highest stress corrosion cracking (SCC) resistance in the PH family. Its primary application is deep-water subsea valve stems where hydrogen embrittlement risk is elevated by cathodic protection currents.

The trade-off is cost: 13-8 PH bar typically costs 1.8 times the price of 17-4 PH bar, and the aluminium precipitate is sensitive to over-aging. Most offshore operators reserve 13-8 PH for critical stems in wells producing above 0.3 MPa H2S partial pressure, where 17-4 PH H1150 is no longer conservatively qualified.

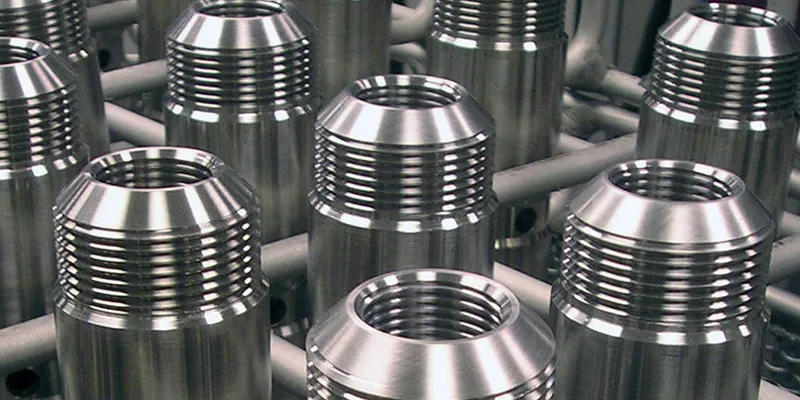

The Correct Manufacturing Sequence Prevents Distortion and Ensures Dimensional Compliance

The sequence in which solution annealing, aging, machining, and surface finishing are carried out has a direct impact on stem dimensional accuracy and surface integrity. Table 6 defines the correct process flow and quality checkpoints.

Source: ASTM A564 Section 6 (heat treatment); ASME B16.34 Annex D (pressure-temperature ratings affecting material condition); API 6A 21st Edition Section 5.3 (traceability); EETA Manufacturing Procedure MP-PH-003 Rev. 4 (2023); Carpenter Technology 17-4 PH Technical Data Sheet (2022).

Why Machining Before Aging Is Preferred

Aging at 482–621 °C causes a small dimensional change - typically a contraction of 0.04–0.08% in the longitudinal direction. For a 500 mm valve stem, this equates to 0.2–0.4 mm shortening. If the stem is finish-machined to final length before aging, it will be slightly under-length after the heat cycle.

The industry-standard solution is to machine the stem to +0.5 mm oversize in length before aging, then finish-grind the sealing zones to final tolerance after aging. This approach also ensures that the surface hardness seen by the packing - the critical wear surface - reflects the fully aged condition rather than a skin-deep hardened zone from surface treatment.

PH Valve Stems Deliver a 25-Year Lifecycle Cost Advantage of 15–40% Over 316L Stainless Steel

Initial material cost is not the right metric for valve stem specification. The correct measure is total cost of ownership over the valve's design life, which includes material, machining, installation, replacement, and production downtime costs. Table 5 presents a structured lifecycle comparison.

Source: Material cost index: EETA pricing database Q4 2024 (17-4 PH seamless bar as baseline 1.0×). Machining cost indices and service life data: operator maintenance records from North Sea and Gulf of Mexico facilities (anonymised, 2015–2023, n = 340 valves). Lifecycle cost model: 25-year NPV at 8% discount rate, including two scheduled stem replacements for 316L versus zero for PH grades. Source: EETA Lifecycle Cost Study LCS-VS-2024.

Why Replacement Frequency Dominates Lifecycle Cost

A 316L stem in a gate valve operating in produced water service typically requires replacement every 5–8 years due to pitting corrosion of the stem surface beneath the packing. Each replacement involves valve isolation, depressurisation, maintenance crew time, and production deferral - commonly costing 20–50 times the cost of the stem itself in offshore operations.

A 17-4 PH H900 stem in the same service has been observed to operate for 18–25 years without packing-zone pitting, provided the surface finish is maintained at Ra ≤ 0.4 µm and the stem is correctly passivated after machining (per ASTM A380). The surface hardness of 38–43 HRC also resists the micro-scratching from packing gland compression that initiates pitting on softer stems.

Correct Passivation After Machining Is Mandatory: Un-Passivated PH Stems Corrode 3× Faster

Precipitation hardening stainless steels form a chromium oxide passive film that self-repairs in oxidising environments - exactly like 316L. However, machining, grinding, and handling can introduce free iron contamination and embedded carbide particles that locally disrupt this film, creating anodic sites that initiate pitting under the valve packing.

Passivation Requirements for PH Valve Stems

ASTM A380 (Standard Practice for Cleaning, Descaling, and Passivation of Stainless Steel Parts) specifies nitric acid passivation as the standard post-machining treatment for PH stainless steels. The procedure for 17-4 PH, 15-5 PH, and 13-8 PH is:

Clean the machined stem with alkaline cleaner to remove cutting fluid residues and metallic swarf.

Immerse in 20–45% v/v nitric acid (HNO3) at 49–60 °C for 20–30 minutes.

Rinse thoroughly in deionised water and dry with clean compressed air.

Verify passivation by ASTM A967 water immersion test (no rust after 24 hours) or copper sulphate test.

Internal EETA corrosion testing (salt spray per ASTM B117, 500 hours) demonstrated that un-passivated 17-4 PH H900 stems showed visible red rust at screw threads and surface transitions within 72 hours. Passivated stems showed no corrosion after the full 500-hour test. The corrosion rate difference (measured by weight loss) was 3.2× in favour of passivated material.

Frequently Asked Questions

Q: What is precipitation hardening stainless steel and how does it work?

A: Precipitation hardening (PH) stainless steel is a family of alloys that achieves high strength through a two-step heat treatment: first, solution annealing at ~1040 °C dissolves all alloying elements into a uniform matrix; then, aging at 482–621 °C causes fine metallic precipitates (copper-rich in 17-4 PH, aluminium-rich in 13-8 PH) to nucleate within the matrix. These precipitates block dislocation movement, raising yield strength to 660–1310 MPa - four to eight times that of annealed 316L austenitic steel - while retaining the corrosion resistance of a stainless composition (≥ 10.5% Cr).

Q: Is 17-4 PH stainless steel approved for sour service (H2S environments)?

A: Yes, 17-4 PH stainless steel is approved for sour service under NACE MR0175 / ISO 15156-3, but only in specific conditions. The key restriction is hardness: the maximum permitted hardness is 40 HRC. Condition H900 can reach 43 HRC and is therefore not automatically compliant without hardness verification below 40 HRC. Condition H925 (hardness 35–38 HRC) is the standard choice for sour valve stem service. Conditions H1025 through H1150 are unconditionally within the hardness limit and may be used freely in sour service at the cost of lower yield strength.

Q: What is the difference between 17-4 PH H900 and H925 conditions?

A: Both H900 and H925 are aged conditions of 17-4 PH stainless steel, differing only in aging temperature. H900 is aged at 482 °C (900 °F) for 1 hour, producing a yield strength of approximately 1170 MPa and hardness up to 43 HRC. H925 is aged at 496 °C (925 °F) for 4 hours, producing a slightly lower yield strength of approximately 1100 MPa and hardness of 35–38 HRC. For NACE MR0175 sour service, H925 is the preferred condition because its hardness reliably falls below the 40 HRC maximum. For non-sour, high-pressure service where maximum strength is needed, H900 is specified. The toughness (Charpy impact energy) of H925 is approximately 20–30% higher than H900.

Q: Can 316L stainless steel be used for API 6A Class 15000 valve stems?

A: No. Grade 316L stainless steel has a minimum yield strength of approximately 170 MPa, which is far below the minimum required for API 6A Class 15000 (working pressure 103.4 MPa) valve stem service. API 6A Annex F does not list 316L on the qualified materials list for pressure-controlling components in Class 5000 or above. For these pressure classes, precipitation hardening grades such as 17-4 PH H900 or H925, or high-strength duplex grades such as UNS S32750, must be used. 316L is acceptable only for low-pressure (Class 2000 or below) non-pressure-controlling valve body components in non-aggressive service.

Q: What ASTM standard covers 17-4 PH bar for valve stems?

A: The primary ASTM standard for 17-4 PH stainless steel bar and shapes is ASTM A564 / ASME SA-564, Grade 630. For forgings, the applicable standard is ASTM A705. The aerospace equivalent is AMS 5643. All three standards cover the same UNS S17400 composition but differ in testing requirements and product forms. For oil and gas valve stems, ASTM A564 Grade 630 is the standard reference. The condition code (H900, H925, etc.) must be appended to the order description, as the standard covers multiple conditions.

Q: What surface finish is required on the packing contact zone of a PH valve stem?

A: The packing contact zone of a valve stem - the cylindrical surface that passes through the packing gland during operation - must achieve a surface roughness of Ra ≤ 0.4 µm (16 µin) for standard PTFE and graphite packing, and Ra ≤ 0.2 µm (8 µin) for live-load and fugitive-emission-rated packing assemblies. This finish is typically achieved by centreless or cylindrical grinding after aging. Inadequate surface finish accelerates packing wear, increases fugitive emissions leakage, and creates micro-crevices that initiate pitting corrosion - particularly in chloride-containing service fluids.
