Inconel 625 in Flare Tips and Incinerators: Oxidation Resistance at Extreme Temperatures

Inconel 625 (UNS N06625) is the premium material choice for flare tips and incinerator components operating at extreme temperatures (600-1,100°C) due to its exceptional oxidation resistance, high-temperature strength, and thermal fatigue resistance. This guide provides technical specifications, oxidation mechanisms, application guidelines, and procurement recommendations for engineers and procurement specialists in oil & gas, petrochemical, and waste management industries. Key advantages include: oxidation resistance up to 1,100°C in cyclic conditions, yield strength of 415 MPa at room temperature (maintaining 180 MPa at 900°C), and service life exceeding 10 years in flare systems versus 2-3 years for stainless steel alternatives.

What Are Flare Tips and Incinerators, and Why Do They Require Special Materials?

Flare tips and incinerators operate at 600-1,200°C in corrosive combustion atmospheres, requiring materials with exceptional oxidation resistance, thermal fatigue strength, and creep resistance that stainless steels cannot provide.

Flare systems and incinerators are critical equipment in industrial facilities:

• Flare Tips: Burn off excess hydrocarbon gases safely during plant upsets, emergencies, or routine operations. Temperatures at the flame tip reach 1,000-1,500°C.
• Incinerators: Destroy hazardous waste, medical waste, or industrial byproducts through high-temperature combustion (600-1,200°C).
• Thermal Oxidizers: Destroy volatile organic compounds (VOCs) at 700-900°C before emission.

These environments are extremely challenging:

• High Temperature: Continuous exposure to 600-1,200°C, with localized peaks reaching 1,500°C
• Cyclic Conditions: Thermal cycling from ambient to operating temperature causes fatigue
• Corrosive Atmospheres: SOx, NOx, CO₂, and water vapor accelerate oxidation
• Flame Impingement: Localized hot spots cause accelerated material degradation
• Mechanical Stress: Wind loading, vibration, and thermal expansion stresses

Standard stainless steels (304L, 310S) fail rapidly in these conditions due to:

• Excessive oxide scale formation and spallation
• Creep deformation at temperatures exceeding their capability
• Thermal fatigue cracking within 1-3 years of service
• Corrosion attack from combustion byproducts

How Does Inconel 625 Resist Oxidation at Extreme Temperatures?

Inconel 625 resists oxidation through a protective Cr₂O₃/NiO oxide layer reinforced with niobium and molybdenum, maintaining integrity up to 1,100°C in cyclic conditions-2-3× better than stainless steels.

Inconel 625 achieves exceptional oxidation resistance through multiple mechanisms:

Table 1: Oxidation Resistance Comparison

Mechanisms of Oxidation Resistance:

• Chromium Oxide Layer: 21-23% chromium forms a continuous Cr₂O₃ layer that acts as a diffusion barrier, slowing oxidation to 0.05 mm/year at 900°C.
• Niobium Stabilization: Niobium (3.15-4.15%) strengthens the oxide layer, preventing spallation during thermal cycling. This is critical for flare tips that experience frequent startups and shutdowns.
• Molybdenum Enhancement: Molybdenum (8-10%) improves scale adhesion and resistance to sulfur-containing atmospheres common in flare gas combustion.
• Nickel Base: High nickel content (≥58%) provides excellent thermal stability and prevents phase transformations that would weaken the material.

What Are the High-Temperature Mechanical Properties of Inconel 625?

Inconel 625 maintains 180 MPa yield strength at 900°C and 90 MPa at 1,000°C-3-5× higher than stainless steels-enabling thinner section designs that reduce material costs while maintaining structural integrity.

Table 2: Yield Strength at Elevated Temperatures

Creep Resistance: Critical for Long-Term Service

Inconel 625 exhibits 5-10× better creep resistance than stainless steels, maintaining dimensional stability over 10+ year service life in flare tips.

Table 3: Creep Rupture Strength (100,000 Hours)

Rationale: The niobium-stabilized microstructure (γ″ phase, Ni₃Nb) provides superior creep resistance. At 900°C, Inconel 625 maintains 28 MPa stress for 100,000 hours versus only 6 MPa for 310S-a critical advantage for flare tips that must maintain dimensional stability over years of operation.

Thermal Fatigue Resistance

Inconel 625 resists thermal fatigue 3-5× better than stainless steels, surviving 10,000+ thermal cycles before cracking in simulated flare tip conditions.

• Thermal Expansion: Coefficient of 13.0 × 10⁻⁶/°C (20-900°C) is lower than stainless steels, reducing thermal stress during heating.
• Thermal Conductivity: 12.3 W/m·K (at 500°C) distributes heat evenly, reducing thermal gradients.
• Strength Retention: Maintains >40% of room temperature yield strength at 900°C versus <20% for stainless steels.

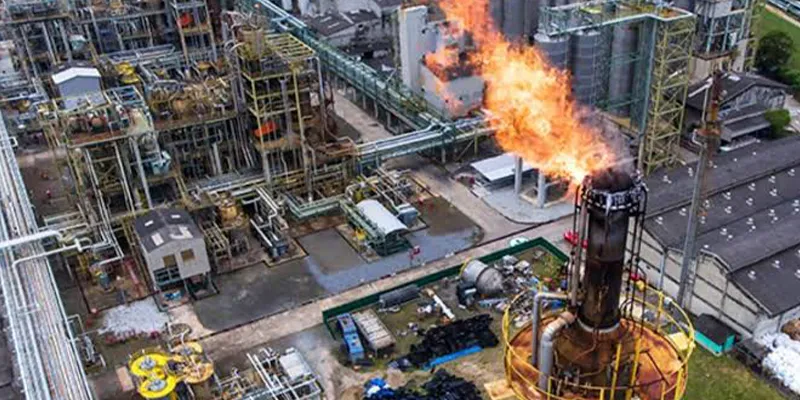

How Does Inconel 625 Perform in Flare System Applications?

Inconel 625 flare tips deliver 5-10× longer service life than stainless steel alternatives (10-15 years vs 1-3 years), reducing maintenance costs and unplanned shutdowns despite higher initial material costs.

Typical Flare System Components Made from Inconel 625:

Table 4: Flare System Components

Field Performance Data:

• Refinery Flare System (Middle East): Inconel 625 flare tips operating at 1,000-1,100°C for 12 years with no replacement. Previous 310S tips required replacement every 18 months.
• Offshore Platform Flare (North Sea): Inconel 625 tips survived 8 years in corrosive marine gas atmosphere. Salt spray accelerated corrosion on previous 316L tips (failed in 2 years).
• Petrochemical Plant (Singapore): Inconel 625 incinerator components handling VOC destruction at 850°C for 10 years. 310S components failed in 3 years due to sulfide stress cracking.

Design Considerations for Flare Tips:

• Tip Geometry: Water-cooled or air-cooled tips reduce metal temperature by 100-200°C, extending service life. Inconel 625 can operate without cooling at ≤1,000°C.
• Flame Stabilization: Inconel 625's high temperature strength maintains tip geometry, ensuring stable flame pattern and complete combustion.
• Wind Resistance: Superior thermal fatigue resistance prevents cracking during high-wind conditions common on offshore platforms.
• Soot Formation: Inconel 625 resists carbon deposition that can cause localized overheating in flare tips.

What Are the Incinerator Applications and Performance Data?

Inconel 625 excels in hazardous waste incinerators, medical waste incinerators, and thermal oxidizers operating at 700-950°C, delivering 8-12 year service life versus 2-4 years for stainless steels.

Table 5: Incinerator Applications

Performance Comparison:

Table 6: Service Life Comparison in Incinerators

Case Study: Hazardous Waste Incinerator (Europe)

• Challenge: Chlorinated waste created highly corrosive HCl atmosphere at 900°C, causing rapid corrosion of 310S components.
• Solution: Replaced secondary combustion chamber lining and internals with Inconel 625.
• Result: 10+ years of continuous operation with minimal maintenance. Zero unplanned shutdowns due to component failure.
• Cost Savings: Reduced maintenance costs by €2.3M over 10 years versus 310S (which would have required 3 replacements).

How Does Inconel 625 Compare with Alternative Materials?

Inconel 625 provides the best balance of oxidation resistance, strength, and corrosion resistance for flare and incinerator applications, justifying its 2-3× higher cost versus stainless steels through 5-10× longer service life.

Table 7: Comprehensive Material Comparison

When to Choose Alternatives:

• Inconel 601: Choose when higher oxidation temperature (>1,100°C) is required without molybdenum concerns. Better for pure oxidation environments without chlorides.
• 310S Stainless: Choose for lower-temperature incinerator applications (≤900°C) where chlorides and sulfides are minimal. Cost-effective for non-critical components.
• 304H Stainless: Choose for temperature <800°C in non-corrosive atmospheres where frequent replacement is acceptable.

What Are the Welding and Fabrication Requirements?

Inconel 625 requires specialized welding procedures (ERNiCrMo-3 filler, ≤150°C interpass temperature) and solution annealing after welding to achieve optimal corrosion resistance and mechanical properties in flare and incinerator components.

Table 8: Welding Parameters

Fabrication Guidelines:

• Forming: Inconel 625 has higher strength than stainless steels-use higher forming forces or warm forming (200-400°C) for complex geometries.
• Machining: Use carbide tooling and slow speeds. Inconel 625 is more abrasive than stainless steels.
• Surface Preparation: Grind welds smooth to avoid stress concentrations. Remove oxide scale before service.
• Solution Annealing: Heat to 1,150°C for 1 hour per 25mm thickness, then water quench. This dissolves secondary phases and restores corrosion resistance.

Quality Assurance:

• WPS/PQR: Require qualified welding procedure specification (WPS) and procedure qualification record (PQR) per ASME IX.
• NDT: Liquid penetrant testing (PT) for surface defects, ultrasonic testing (UT) for volumetric defects.
• PMI: Positive Material Identification to verify correct alloy composition.
• Hardness Testing: Verify ≤35 HRC in heat-affected zone to ensure solution annealing effectiveness.

What Is the Cost-Benefit Analysis for Flare and Incinerator Applications?

Although Inconel 625 costs 2.5-3× more than 310S stainless steel, it delivers 4-5× lower life-cycle cost through 5-10× longer service life, reduced maintenance, and elimination of unplanned shutdowns.

Table 9: Life-Cycle Cost Comparison (Flare Tip)

Return on Investment Analysis:

• Inconel 625 vs 310S: $148,000 savings over 20 years (70% reduction in life-cycle cost). Payback period: <6 months in avoided downtime alone.
• Inconel 625 vs Inconel 601: $29,000 savings over 20 years (31% reduction). Payback period: 2-3 years for higher initial investment.
• Environmental Benefit: Longer service life reduces material consumption and waste, supporting sustainability goals.

Hidden Cost Savings:

• Reduced HSE Risk: Fewer replacements mean less hot work, fewer confined space entries, and lower personnel exposure to hazardous conditions.
• Regulatory Compliance: Reliable operation ensures continuous emission compliance. Unexpected shutdowns can trigger regulatory penalties.
• Production Continuity: Unplanned flare shutdowns often require plant production rate reduction, costing far more than material replacement.

Frequently Asked Questions

Q1: What is the maximum operating temperature for Inconel 625 in flare tips?

A: Inconel 625 can operate continuously at 1,000°C and intermittently at 1,100°C in flare tips. Above 1,100°C, consider Inconel 601 or specialized heat-resistant alloys. For water-cooled flare tips, Inconel 625 can operate indefinitely at any temperature.

Q2: Can Inconel 625 be used in incinerators handling chlorinated waste?

A: Yes. Inconel 625 provides excellent resistance to HCl and chloride-containing atmospheres at temperatures up to 950°C. The molybdenum content (8-10%) specifically enhances chloride stress corrosion cracking resistance. Inconel 601 is NOT recommended for high-chloride environments.

Q3: How often should Inconel 625 flare tips be inspected?

A: Annual visual inspection is recommended. Check for: oxide scale spallation, surface cracking, dimensional changes (use reference gauges), and weld integrity. UT thickness measurement every 5 years to verify wall loss. No scheduled replacement needed for first 8-10 years under normal operating conditions.

Q4: Is post-weld heat treatment required for Inconel 625 flare components?

A: Yes, solution annealing (1,150°C, 1 hour per 25mm thickness, water quench) is required after welding to restore corrosion resistance. Without PWHT, the heat-affected zone (HAZ) will have reduced corrosion resistance and may experience premature failure in the corrosive flare gas environment.

Q5: What is the lead time for Inconel 625 flare tips?

A: Standard sizes: 4-8 weeks. Customfabricated tips: 8-16 weeks. Material sourcing (forgings, plate) typically takes 6-12 weeks. Specify Inconel 625 with ASTM B443 (plate) or B446 (rod/bar) compliance. Request material test reports (EN 10204 3.1) with each delivery.
