Alloy 20, known chemically as UNS N08020, is this nickel-iron-chromium austenitic material, enriched with copper and molybdenum, that offers exceptional resistance to sulfuric acid, pitting, and crevice corrosion in harsh environments such as chemical processing, pharmaceuticals, and food production.
The ASME B16.11 standard governs the design, manufacture, and performance of forged steel fittings for socket-welding and threaded connections. This specification ensures uniformity in pressure-temperature ratings, dimensions, tolerances, marking, and material requirements, making it indispensable for high-stakes applications.
In this blog, we'll delve into the primary types of ASME B16.11 Alloy 20 forged fittings, provide detailed introductions to each, and outline their production specifications and dimensional standards.

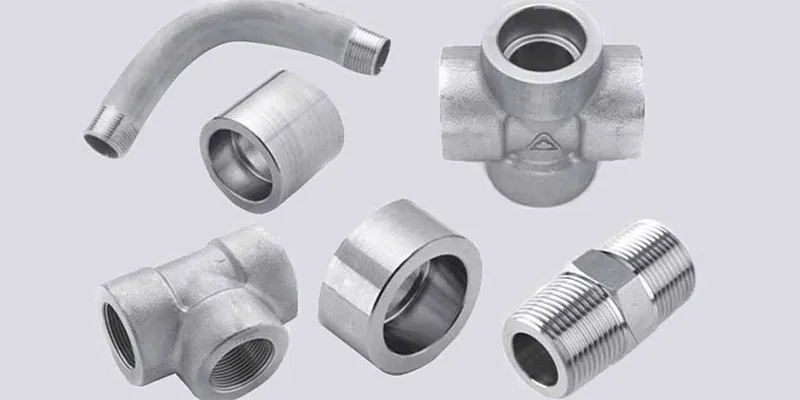

ASME B16.11 Alloy 20 Forged Fittings Types
The ASME B16.11 standard covers a comprehensive range of fitting types, each available in either Socket Weld (SW) or Threaded end connections. The most common types include:
Elbows (90° and 45°): Used to change the direction of pipeline flow. 90° elbows are most common, while 45° elbows provide a more gradual turn.
Tees (Equal, Reducing, Lateral): Used to combine or split fluid flow. Equal tees have all three outlets the same size; reducing tees have one outlet a different size; lateral tees feature a 45-degree branch.
Couplings (Full and Half): Full couplings join two pipes of the same size. Half couplings are often used as a branch connection, threaded on one end and welded to a pipe run on the other.
Unions: Allow for easy disassembly of a piping system. A three-piece union consists of two internal threads and a central locknut.
Caps: Seal the end of a pipe.
Bushings and Plugs: Bushings are used to reduce a threaded connection size. Plugs seal the end of a threaded fitting.
Swage Nipples: Used for connecting pipes to smaller-diameter fittings or equipment, available in concentric and eccentric types.
Alloy 20 Forged Fitting Specifications and Standards
Alloy 20 forged fittings under ASME B16.11 are manufactured to precise tolerances to guarantee interchangeability and safety. Key specifications include:
Material Standards: Compliant with ASTM B462 / ASME SB462 for wrought austenitic Alloy 20, ensuring chemical composition (e.g., 32-38% Ni, 19-21% Cr, 2-3% Mo) and mechanical properties like tensile strength ≥ 80 ksi and yield strength ≥ 35 ksi.
Pressure Ratings: Threaded fittings are rated in classes 2000, 3000, 6000, and 9000 psi; socket-weld in classes 3000, 6000, and 9000. Ratings vary with temperature, as per ASME B16.11 tables.
Size Range: Nominal Pipe Size (NPS) from 1/8" to 4" (DN 6 to DN 100). For example:
Elbows and Tees: Socket bore diameters range from 0.420" (NPS 1/8) to 4.593" (NPS 4).
Couplings: Lengths from 0.75" (NPS 1/8) to 2.50" (NPS 4).
Dimensional Tolerances: Center-to-end dimensions tolerate ±0.06" for NPS ≤2 and ±0.12" for larger sizes. Wall thicknesses meet minimum requirements for pressure containment.
Marking and Testing: Each fitting is marked with the manufacturer, material grade, size, class, and heat code. Hydrostatic testing up to 1.5 times the rating ensures integrity.
For detailed dimension tables, refer to ASME B16.11 appendices, which outline specifics like socket depths and thread lengths. Production involves forging at controlled temperatures, followed by heat treatment to optimize corrosion resistance.
Conclusion
From elbows directing aggressive fluids to unions enabling swift maintenance, each fitting type serves as a fortified junction in your system.
As your supplier, we provide not only the geometrically precise and fully certified fitting but also the technical assurance that comes with decades of experience in supplying high-performance alloys for the world's most challenging applications.
When your design needs for Alloy 20, ensure its resistance is backed by the forged strength of ASME B16.11.
