Pipe Spool Marking and Traceability: Heat Number Transfer, Tagging, and ISO 9001 Compliance

Traceability answers four questions: which heat of metal is in this joint, who welded it, which procedure was used, and did it pass inspection. The whole system exists to keep those four answers intact through cutting, forming, welding, heat treatment, coating and shipping. The single point where the chain most often breaks is the moment the pipe is cut.

A mill certificate describes a length of pipe; a spool is an assembly of pieces from several heats, and the only thing joining the document to the part is a number that was physically copied across. Marking is also the one operation that can damage the part it identifies, which is why deep stamping is restricted on thin wall and prohibited on welds, and why marking ink on stainless steel must be free of zinc, lead and copper.

This guide works through the marking and traceability system for prefabricated pipe spools in order: what the standards actually require, when the heat number has to be transferred, which marking methods are safe on stainless steel and nickel alloys, how the EN 10204 certificate ladder changes what you are allowed to claim, and how an ISO 9001 audit finds a broken chain.

For the fabrication workflow that produces the records, the pipe spool fabrication guide covers the shop process and quality controls that create these records, and the shop versus field welding cost comparison covers why the work is moved into a workshop in the first place.

Key facts about pipe spool marking and traceability

What does ASME B31.3 actually require for heat number transfer?

It does not require it directly, and that surprises people. ASME B31.3 Interpretation 8-19, issued 7 May 1990, was asked whether the Code requires material conforming to para. 323.1.1 or 323.1.2 to be re-identified after cutting for fabrication, and the official reply was no. It was also asked whether B31.3 has qualification requirements for the person doing the re-identification, and the reply was no.

The obligation still exists, but it comes from somewhere else. Para. 341.4.1(c) requires the manufacturer to prepare records certifying that materials and components are of the specified grades, that required heat treatment has been performed, and that required examination and testing has been completed. You cannot satisfy that paragraph for a spool assembled from pieces of several heats unless you know which heat went into each piece. The rationale for reading the two together is that the Code states the outcome and leaves the mechanism to the fabricator, so a fabricator who reads only Interpretation 8-19 concludes nothing is required, and a fabricator who reads only 341.4.1 concludes heat stamping is mandated. Both readings are incomplete.

The practical consequence is that the requirement is written into your quality plan, your ISO 9001 procedures and your purchase order, not into the Code paragraph. That means it is negotiable in a way a Code clause is not, and it means the buyer has to specify it explicitly. If your enquiry says nothing about heat number transfer, a fabricator has done nothing wrong.

Key point: The sentence worth remembering: ASME B31.3 does not require re-identification after cutting, but para. 341.4.1(c) requires records that can only be produced if you do it. Traceability is obligatory through the records clause, not through a marking clause.

When exactly must the heat number be transferred from the pipe?

Before the pipe enters the cutter. That is the whole answer, and it is the difference between a one-minute task and a half-day reconstruction.

A mill certificate is a document about a length of pipe, and the mark on that pipe is the only physical link. If the heat number is applied to the cut piece, someone has to match a short piece back to a long one, usually by length and by position in a bundle, and that match is an opinion rather than a fact. If the heat number is on the pipe before the cut, the cutter cuts through the mark, each resulting piece carries the identity, and the certificate still describes what was cut. The rationale is that traceability is a property of the physical item, not of the paperwork, and any step that breaks the physical link converts a fact into an inference.

The task itself is small. Mark the pipe with its heat number, the cut length and the spool number, then cut. Where the cut consumes the mark, the practical answer is to mark both sides of the cut position or to carry the number on an attached durable tag before sawing. The mistake to avoid is the reverse workflow, where the cut list is printed first, the pipe is cut, and the heats are written onto the pieces afterwards by whoever is at the saw.

The traceability chain and the control that protects each link

Two secondary points are worth making because they come up in almost every audit. Spares and cut-offs are part of the chain: an offcut from a marked pipe still carries its heat number, still has a valid certificate, and must be marked and stored so it can be used against the right documentation later. And the spool number is a different identifier from the heat number. The spool number says which assembly, the heat number says which metal, and a spool routinely contains three or four different heats.

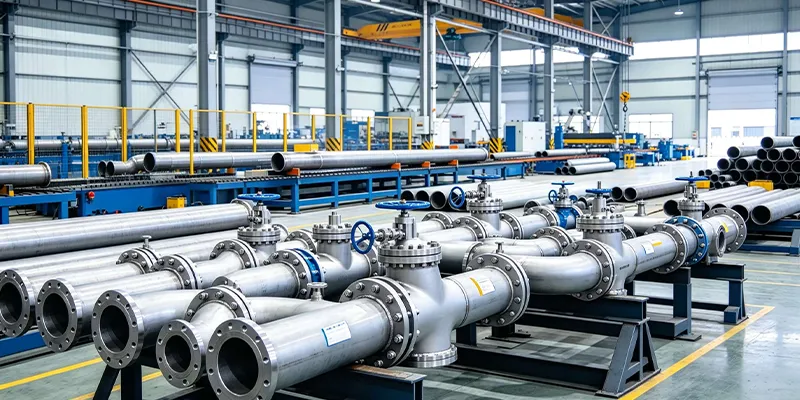

Which marking methods are safe, and which will damage the spool?

Low-stress stamping, etching, laser marking, indelible ink and durable tags are all acceptable. Deep hard stamping is the one that causes trouble, because it puts a notch into the pressure boundary of a component that may be in cyclic service.

The physics is straightforward. A die stamp displaces metal and leaves residual stress; a hard stamp leaves a sharp notch. Under cyclic loading, a notch in a pressure-retaining component is exactly where a crack starts, and the depth of the impression is what sets the severity. That is why low-stress stamps are shallow, typically under 0.2 mm, and why many client specifications prohibit die stamping entirely on thin wall. The rationale for preferring a non-contact method on stainless and nickel alloys is not just stress: it is that these alloys are expensive, and a scrapped spool caused by a stamped crack is a far larger loss than the cost of laser marking.

Marking methods compared for pipe spools

Key point: Mark human-readable text first and the code second. A barcode that scans perfectly still fails if the operator cannot read the spool number when the scanner is down, and the operator is the one who stops the crane.

Location matters as much as method. Never mark a weld, its heat-affected zone, a bend or a stress concentration, and never mark where a later process will remove the surface, unless the mark is repeated elsewhere. On a spool that will be coated or insulated, the practical sequence is to record the heat numbers on the isometric before finishing begins and attach a durable tag that remains visible. The tag attachment system becomes part of the identification design, and it is the detail most often left to the packer.

What marking restrictions apply to stainless steel and nickel alloy spools?

Two specific restrictions: no metallic-pigment inks or paints, and no hard stamping. The first is a corrosion control requirement, and it is the one most often missed.

Stainless steel and nickel alloys depend on a chromium-rich passive film for their corrosion resistance. Zinc, lead and copper in a marking ink or paint are more noble than the alloy, so in the presence of moisture they form a galvanic couple with the pipe surface, and the smaller the marked area the larger the relative damage.

The result looks like a paint chip and behaves like a pitting initiation site; once chloride reaches it in service, the pit grows. Chinese standard GB/T 2102 addresses this directly, requiring marking paint or ink on stainless pipe to be free of harmful metals and metal salts such as zinc, lead and copper. The rationale is simple: marking is supposed to be a label, and on a passive alloy a label containing a dissimilar metal becomes a defect.

For nickel alloys the same logic applies with less margin, because nickel alloys are frequently chosen precisely for service where chloride pitting is the failure mode. A mark that initiates a pit in a C276 line handling wet HCl is a much more expensive outcome than a re-marked spool, which is the calculation that should drive the decision. Non-contact marking is the default for these families, and the material families most at risk are covered in the Hastelloy C276 hub, nickel alloy overview and duplex stainless steel pipe guides.

• Use a marking medium certified free of zinc, lead, copper and chlorides on any stainless or nickel alloy component. Do not assume a general-purpose paint marker is acceptable.
• Prefer etching, laser or indelible ink over stamping on austenitic stainless, duplex and all nickel alloys.
• Never place a stamp on a weld, heat-affected zone, bend or flange face that will be gasketed.
• Where a client specification prohibits stamping outright, that prohibition wins over standard practice and over the mill's own marking.
• Check the purchase order: some specifications prohibit stamping entirely for sour service materials, where hardness and hydrogen interaction make any notch unacceptable.

How does the EN 10204 certificate ladder change what you can claim?

It sets the independence of the party signing the document, and therefore the weight the document carries. Type 2.1 is a self-declaration with no test data, 3.2 is a third-party witnessed document, and the difference between them is who checked.

For a spool package, the certificate type determines whether you can claim the material was tested or only that the manufacturer says it was. A 2.2 test report reports results from non-specific inspection, which typically means a sample from the lot rather than the actual piece supplied, and it is issued by a quality function that is not independent of production. A 3.1 inspection certificate reports tests on the actual supplied product and must be signed by a representative independent of the manufacturing department. The rationale for caring about this distinction is that it determines what an inspector can conclude, and 3.1 is the practical minimum for pressure work.

EN 10204 inspection document types and what each one supports

Two practical notes. A 3.1 certificate must name the purchaser, because it is issued against a specific order, so a 3.1 certificate supplied for someone else's order does not serve as traceability for yours. And issuing 3.1 requires the manufacturer to hold ISO 9001 or the equivalent PED 4.3 conformity assessment; a supplier without either cannot self-issue 3.1, which is worth checking when a small supplier offers you 3.1 at a suspiciously low price.

The same independence logic applies to the mill certificate for the pipe in your spool, and the material grades themselves are set out in the ASTM standards for Hastelloy C276 and how to choose nickel alloy pipe for chemical plants guides.

What does ISO 9001 clause 7.5.3 require for spool identification?

Where traceability is required, the organisation must control and record the unique identification of the product. That is the whole requirement, and it is deliberately performance-based rather than prescriptive, so the standard tells you what the outcome must be and leaves the method to you.

The clause reads, in substance: use appropriate methods to identify the product throughout production, identify the status of the product against monitoring and measurement requirements, and where traceability is required, control and record unique identification.

Clause 7.5.3 in ISO 9001:2015 is mirrored at clause 8.6.2 in the amendment that followed it, which is why you will see both numbers cited in audit reports depending on the edition of the standard the certification body used. The rationale for the clause being written as an outcome rather than a list of documents is that it lets a fabricator use a weld map, a barcode system or a stamped tag, provided the identification is unique, controlled and recorded.

ISO 9001 traceability requirements mapped to spool practice

The practical value of the clause is that it makes traceability auditable in a way that no piping Code does. An ISO 9001 surveillance audit will sample welds, pull the weld map, and ask for the welder stamp and the NDE report for that number. It will also pull a heat number and ask for the certificate behind it. Both exercises are routine, and a shop that has run a real traceability system answers them in minutes, while a shop that keeps certificates in a folder and heats in memory does not.

How does the weld map complete the traceability chain?

The weld map is the document that carries each weld number to the procedure, the welder, the filler metal, the examination result and the repair history. Without it, the spool is a physical object with no memory.

Each weld entry needs a unique number, the isometric and line reference, the WPS number, the welder stamp, the base metal and filler metal specification, the joint type, the size and schedule, the NDE method and result, the PWHT status, the date welded, and the repair history. The rationale for each field is that every one of them answers a question an inspector or a future failure investigator will ask, and a field that is missing becomes a question that cannot be answered. The number itself should be marked on the pipe adjacent to the weld so the physical joint and the record are unambiguously linked.

The distinction worth keeping straight is between the weld map, which is the graphical view of where the numbered welds are, and the weld log, which is the tabular record of who did them and what was found. They are two halves of one system, and a package with one but not the other is half a package. The broader welding process is covered in the Hastelloy C276 welding guide, and the fabrication sequence that produces these records in the prefabricated service solution and the Inconel 625 spool case study.

Fields required on every weld map entry

Key point: Record the filler metal lot number, not only the classification. An audit that finds ER316L on the weld map and no lot number has a record that identifies the alloy but cannot identify the batch, which is the level at which a recall or a corrosion investigation actually operates.

What are the most common traceability failures found in a spool audit?

Five, and every one of them is a mismatch between two records rather than a missing record. That is the pattern worth noticing: fabricators rarely fail to write something down, they fail to make the two things they wrote down agree.

The most frequent is a heat number on the weld map that does not match the physical marking on the part, which usually means material was substituted and the records were not updated. The second is a welder ID missing for specific joints, typically because somebody welded with another person's stamp or because a stamp fell off. The third is filler metal recorded as a classification with no lot.

The fourth is an NDE report referencing a weld number that is not on the map, because numbering was changed during fabrication without updating every document. The fifth is a PWHT chart that records a temperature profile but does not say which joints were in the furnace load, which makes the chart unusable as evidence.

• Heat number on the weld map does not match the physical mark on the component.
• Welder identification missing for specific joints, or a stamp not applied at all.
• Filler metal lot number not recorded, only the AWS classification.
• NDE report references a weld number that does not appear on the weld map.
• PWHT chart does not identify the joints included in that furnace load.
• The fix for all five is the same, and it is procedural rather than technical: verify the chain before the pressure test rather than at handover. By the time a spool is being installed, a traceability failure costs a cut-out. Before the hydrotest, it costs a piece of paper.

What is the shortest version of a compliant spool marking system?

Mark the heat number on the pipe before it is cut. Use a method that does not damage the metal or introduce contamination. Record the welder, the procedure and the filler lot against a weld number marked beside the joint. Extend the marks to the drawing before coating hides them, and check the whole chain for agreement before the pressure test.

The deeper point is that none of this is administrative overhead. Every one of those steps exists because a spool can fail years after installation, and when it does, the only question that matters is which heat of metal was in the joint and what was done to it. A shop that cannot answer that has a problem that no amount of welding quality can compensate for. The cost of the system is minutes per spool. The cost of missing one is an investigation, a cut-out, and a claim.

For related reading, the shop versus field welding cost comparison covers the commercial argument for prefabricating, the prefabricated service solution covers scope and capacity, and the Inconel 625 spool case study for an LNG facility shows a full nickel alloy documentation package in practice.

How to Choose the Right Pipe Spool Traceability

Fix the identification scheme before material arrives. Agree the spool number convention, the weld numbering convention and what each mark must contain. A scheme agreed after the first audit finding is a scheme that will be wrong.

Register the heat number at goods receipt. Record the mill certificate number against the heat number and the physical marking on the item. Certificate and marking must agree before the material enters stores.

Perform positive material identification. Confirm the alloy on the component by X-ray fluorescence or optical emission. This is a separate check from the certificate, and it is what catches mixed grades in a stores yard.

Transfer the heat number before cutting. Mark the pipe with its heat number, cut length and spool number, then cut. Marking after cutting forces the certificate-to-piece mapping to be rebuilt by hand.

Add component marks at fit-up. Mark fittings, flanges and valves with their own heat numbers and add the weld number from the weld map adjacent to each joint as it is made.

Record the welder, procedure and filler lot per weld. Each weld entry carries the welder stamp, the WPS number and the specific filler lot, not only the filler classification. This is the record an inspector reconstructs from.

Protect marks through finishing. Where coating or insulation hides a mark, extend the marking to the isometric before coating and attach a durable tag that stays visible. Record the transfer in the job pack.

Verify the chain before the pressure test. Run a completeness check: every weld number on the map has a procedure, a welder and an NDE result, and every heat number on the map exists on the physical part. Then release.

Frequently Asked Questions About Pipe Spool Traceability

Q1. Does ASME B31.3 require heat numbers to be transferred to cut pipe?

No, not directly. ASME B31.3 Interpretation 8-19, issued 7 May 1990, states the Code does not require material conforming to para. 323.1.1 or 323.1.2 to be re-identified after cutting, and that B31.3 has no qualification requirements for the person doing the re-identification. The obligation still exists through para. 341.4.1(c), which requires records certifying materials are of the specified grades.

Q2. Then why is heat number transfer treated as mandatory in practice?

Because para. 341.4.1(c) requires the manufacturer to prepare records certifying materials and components are of the specified grades, with the required heat treatment, examination and testing completed. A spool assembled from pieces of several heats cannot satisfy that paragraph unless you know which heat went into each piece. The requirement is written into quality plans, ISO 9001 procedures and purchase orders rather than into a Code marking clause.

Q3. When must the heat number be transferred?

Before the pipe enters the cutter. If the heat number is on the pipe before cutting, each resulting piece carries the identity and the certificate still describes what was cut. If it is applied to the cut piece, someone has to match a short piece back to a long one by length and position, and that match is an inference rather than a fact.

Q4. Which marking methods are allowed on stainless steel and nickel alloy spools?

Low-stress stamping, electrolytic etching, laser marking, indelible ink and durable metal tags. Deep hard stamping is generally restricted or prohibited below about 4 mm wall thickness and must never be applied to a weld, heat-affected zone, bend or stress concentration. Many client specifications prohibit stamping entirely on thin-wall or sour-service materials.

Q5. Why can marking ink damage stainless steel?

Because inks and paints containing zinc, lead or copper form a galvanic couple with the pipe surface in the presence of moisture. The more noble metal does not corrode; the pipe does, at the marked spot. GB/T 2102 requires marking paint or ink on stainless pipe to be free of harmful metals and metal salts such as zinc, lead and copper. A paint chip on stainless is potentially the start of a pitting site.

Q6. What is the difference between EN 10204 2.2 and 3.1 certificates?

A 2.2 test report is issued by the manufacturer's quality function and reports results from non-specific inspection, typically a sample from the lot rather than the actual supplied product, without independence from production. A 3.1 inspection certificate reports tests on the actual supplied product and must be issued by a representative independent of the manufacturing department. Pressure equipment normally specifies 3.1 as a minimum.

Q7. When is an EN 10204 3.2 certificate required instead of 3.1?

A 3.2 certificate is compiled with an independent inspector representative and is required for PED applications, nuclear work, and other high-risk regulatory frameworks. A supplier cannot self-issue 3.2. Note that issuing 3.1 also requires the manufacturer to hold ISO 9001 or the equivalent PED 4.3 conformity assessment.

Q8. What does ISO 9001 clause 7.5.3 require for product traceability?

Where traceability is required, the organisation must control and record the unique identification of the product, and must identify the status of the product against monitoring and measurement requirements. The clause is in ISO 9001:2015 at 7.5.3 and is mirrored at 8.6.2 in the amendment that followed, which is why audit reports cite one or the other depending on the edition used.

Q9. What fields does a weld map need for each weld?

Weld number, isometric and line reference, WPS number, welder stamp, base metal specification, filler metal classification and lot number, joint type, size and schedule, NDE method and result, PWHT status, date welded, and repair history. The weld number should also be marked on the pipe adjacent to the weld so the physical joint and the record are unambiguously linked.

Q10. Must the filler metal lot number be recorded, or is the classification enough?

The lot number is required. Recording only the AWS classification, for example ER316L, identifies the alloy but not the batch. A corrosion investigation or a recall operates at batch level, so a weld map without lot numbers cannot answer the question it would be asked.

Q11. How long must spool traceability records be kept?

ASME B31.3 requires welder identification records to be retained for the life of the piping installation. Purging weld records after project closeout is a compliance failure and creates liability exposure, because a future failure investigation may need the welder and procedure records to determine whether the joint was built correctly.

Q12. What happens to marks that coating or insulation will hide?

Extend the marking to the isometric before finishing begins and attach a durable metal tag that stays visible, recording the transfer in the job pack. The mark itself is not required to remain visible once it is hidden, provided the identification survives elsewhere and the transfer is documented.

Q13. What are the most common traceability failures in a spool audit?

Five, all of which are mismatches between two records: a heat number on the weld map that does not match the physical marking; a welder ID missing for specific joints; filler metal recorded as classification only; an NDE report referencing a weld number not on the map; and a PWHT chart that does not state which joints were in the furnace load.

Q14. Do cut-offs and offcuts need heat number marking too?

Yes. An offcut from a marked pipe still carries its heat number and is still covered by that heat's certificate. Each piece should be marked and stored so it can be used against the correct documentation later, or scrapped with a record of what it was.

Q15. Can a spool contain more than one heat number?

Yes, and it routinely does. A spool assembled from a straight pipe, an elbow, a flange and a valve will usually contain three or four different heats. The spool number identifies the assembly; the heat numbers identify the metal. Both are needed, and they answer different questions.

Q16. Does the tag on a spool have to stay attached to the spool rather than the crate?

Yes. A tag attached to a crate identifies the packaging, not the component. Tags must be attached to the spool so that the identification travels with the item through handling, storage and installation, and the attachment system becomes part of the identification design.

Q17. What is a durable tag and when is it preferred over marking the metal?

A metal tag mechanically attached with wire, rivet or a welded stud, carrying the spool number, line number, heat numbers and orientation. Tags are preferred for small bore pipe that cannot carry a legible mark, for bundled items, and for components that will be coated or insulated where the mark would be hidden.

Q18. Does ISO 9001 require a specific traceability document format?

No. The standard is performance-based: it requires unique identification to be controlled and recorded, but does not mandate a weld map, a barcode system or a stamped tag. A fabricator may use any of these provided the identification is unique, controlled and recorded throughout production.
